Model |
FD50T-C2W(3)3 /FD50T-C2WF3 |
---|---|
Type of Forklift |
Terrain |
Capacity |
5.0T 2WD |
Engine |

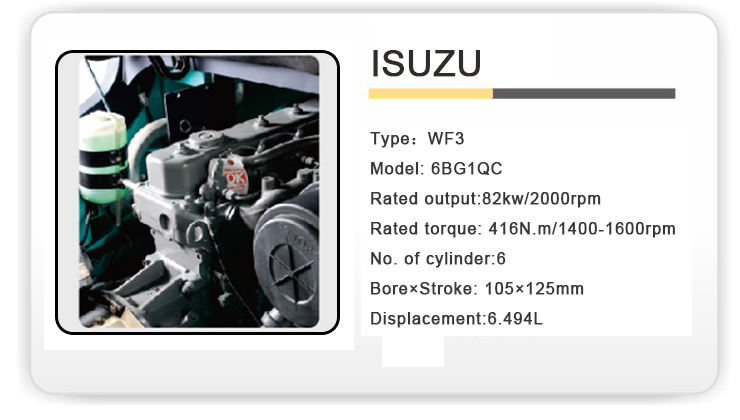

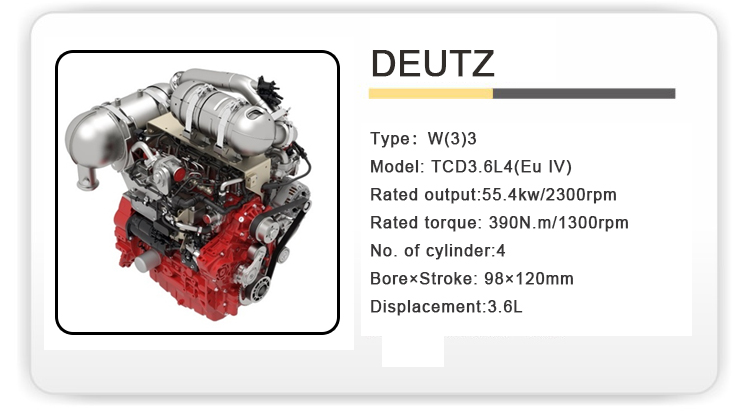

DEUTZ TC03.6 L4(EU IV) / ISUZU 6BG1QC |
Mast |
wide view 2-stage mast/Full free 3-stage mast |
Tyres |
Pneumatic /Solid/Non marking |
Our rough terrain forklift is a tough,compact forklift with a 2WD system.The forklift is based on conventional forklift, but built for rough terrain performance.1.Our rough terrain forklift is a tough, compact forklift with a two-wheel drive system.
2.The forklift is based on conventional forklift, but built for rough terrain performance.
The steering angle is from 43.6°to 70° with very small turning radius.
1.The Our rough terrain forklift adopts a floating R.O.P system.
2.Our ’s engineers use superior full floating operator cabin. It has adapted the latest ergonomics for operator convenience.
3.Travel & hydraulic controls are positioned forward for most ergonomic natural operation.
4.Fully adjustable tilt steering wheel and fully suspension seat with seat belt accommodates all size operators.
4.0T rough terrain forklift body min. ground clearance is 320mm;
5.0T rough terrain forklift body min. ground clearance is 320mm;
Our rough terrain forklift front tyres are a special heavy truck tyre with a wide footprint giving it greater stability and lift capacity in rough work environments.
1. 4.0T rough terrain forklift mast width is 2067mm;
2. 5.0T rough terrain forklift mast width is 2067mm;
3. Maximum mast tilt angle F/R reaches to 15°/15°;
1 | Model | FD50T-C2W(3)3 | FD50T-C2WF3 | |||||
2 | Power type | Diesel | Diesel | |||||
3 | Rated capacity | kg | 5000 | 5000 | ||||
4 | Load centre | mm | 600 | 600 | ||||
5 | Lift height | mm | 3000 | 3000 | ||||
6 | Free lift height | mm | 145 | 145 | ||||
7 | Fork size | L×W×T | mm | 1220×150×55 | 1220×150×55 | |||
8 | Fork regulating range | Min./Max. | mm | 300/1654 | 300/1654 | |||
9 | Mast tilt angle | F/R | Deg | 15°/15° | 15°/15° | |||
10 | Front overhang | mm | 732 | 732 | ||||
11 | Rear overhang | mm | 764 | 764 | ||||
12 | Ground clearance(bottom of mast) | mm | 320 | 320 | ||||
13 | Overall dimensions | Length to face of fork (without fork) | mm | 3622 | 3622 | |||
14 | Overall width | mm | 2067 | 2067 | ||||
15 | Mast lowered height | mm | 2565 | 2565 | ||||
16 | Mast extended height (with backrest) | mm | 4170 | 4170 | ||||
17 | Overhead guard height | mm | 2545 | 2545 | ||||
18 | Min. turning radius | mm | 3550 | 3550 | ||||
19 | Min. right angle aisle width | mm | 5700 | 5700 | ||||
20 | Speed | Travel(Laden/Unladen) | km/h | 19/20 | 20/21 | |||
21 | Lifting(Laden) | mm/sec | 380 | 420 | ||||
22 | Lowering(Laden) | mm/sec | 370 | 410 | ||||
23 | Max. Drawbar pull(Laden | KN | 50 | 50 | ||||
24 | Max. Gradeability(Laden) | % | 20 | 28 | ||||
25 | Tyre | Front | 445-65-22.5PR | 445-65-22.5PR | ||||
26 | Rear | 12.5/80-18 | 12.5/80-18 | |||||
27 | Tread | Front | mm | 1620 | 1620 | |||
28 | Rear | mm | 1720 | 1720 | ||||
29 | Wheelbase | mm | 2125 | 2125 | ||||
30 | Self weight | kg | 8450 | 8450 | ||||
31 | Axle distribution | Laden | Front axle | kg | 11700 | 11700 | ||
32 | Rear axle | kg | 1750 | 1750 | ||||
33 | Unladen | Front axle | kg | 3550 | 3550 | |||
34 | Rear axle | kg | 4900 | 4900 | ||||
35 | Battery | Voltage/Capacity | V/Ah | 2×12/80 | 2×12/80 | |||
36 | Operating pressure | MPa | 20 | 20 |
Type | Model | Max. fork height | Overall height Lowered |
Free lift | Front Overhang | Tilt range | Capacity | |||
With backrest | Without backrest | FWD | BWD | capacity at max. height | ||||||
5.0t | Without side shift carriage |
With side shift carriage |
||||||||
5.0t | 5.0t | |||||||||
mm | mm | mm | mm | mm | Deg | Deg | kg | kg | ||
wide view 2-stage mast |
M300 | 3000 | 2565 | 145 | 145 | 732 | 15 | 15 | 5000 | 4700 |
M330 | 3300 | 2715 | 145 | 145 | 732 | 15 | 15 | 5000 | 4700 | |
M350 | 3500 | 2815 | 145 | 145 | 732 | 15 | 15 | 5000 | 4700 | |
M370 | 3700 | 2915 | 145 | 145 | 732 | 15 | 15 | 5000 | 4700 | |
M400 | 4000 | 3115 | 145 | 145 | 732 | 15 | 15 | 5000 | 4700 | |
M450 | 4500 | 3365 | 145 | 145 | 732 | 15 | 15 | 4500 | 4050 | |
M500 | 5000 | 3615 | 145 | 145 | 732 | 15 | 15 | 4000 | 3600 | |
Full free 3-stage mast |
TFM400 | 4000 | 2560 | 1000 | 1350 | 765 | 15 | 15 | 5000 | 4500 |
TFM435 | 4350 | 2685 | 1125 | 1475 | 765 | 15 | 15 | 4500 | 4050 | |
TFM450 | 4500 | 2736 | 1176 | 1526 | 765 | 15 | 15 | 4000 | 3600 | |
TFM470 | 4700 | 2802 | 1242 | 1592 | 765 | 15 | 15 | 3700 | 3350 | |
TFM500 | 5000 | 2935 | 1375 | 1725 | 765 | 10 | 15 | 3300 | 2950 | |
TFM540 | 5400 | 3060 | 1500 | 1850 | 765 | 10 | 15 | 2400 | 2150 | |
TFM600 | 6000 | 3300 | 1740 | 2090 | 765 | 10 | 15 | 2000 | 1800 |
