Rough Terrain Forklift

Model	FD18T-C2WE3 /FD25T-C2WE3 /FD35T-C2WE3
Type of Forklift	Terrain
Capacity	1.8T/2.5T/3.5T 2WD
Engine	Yanmar 4TNE98(Eu III/EPAIII)/MITSUBISHI S4S(Eu III/EPAIII)
Mast	Full free 3-stage mast/M300-M600/wide view 2-stage mast/Full free 3-stage mast
Tyres	Pneumatic /Solid/Non marking

Our rough terrain forklift is a tough,compact forklift with a 2WD system.The forklift is based on conventional forklift, but built for rough terrain performance.

Two-Wheel Drive System

1.Our rough terrain forklift is a tough, compact forklift with a two-wheel drive system.
2.The forklift is based on conventional forklift, but built for rough terrain performance.

Steer Axle

The steering angle is from 43.6°to 70° with very small turning radius.

Transmission

1.Power shift transmission with torque converter features two (2) pedal inching and brake control and full reversal allowing faster cycle times.
2.The 100% differential is specifically designed for rough terrain and features automatic differential lock providing ultimate traction during inclement weather conditions and rough operating surfaces.

Floating System

1.The Our rough terrain forklift adopts a floating R.O.P system.
2.Our ’s engineers use superior full floating operator cabin. It has adapted the latest ergonomics for operator convenience.
3.Travel & hydraulic controls are positioned forward for most ergonomic natural operation.
4.Fully adjustable tilt steering wheel and fully suspension seat with seat belt accommodates all size operators.

Maneuverability

2.5T rough terrain forklift body min. ground clearance is 250mm;
3.5T rough terrain forklift body min. ground clearance is 284.5mm;

Tyres

Our rough terrain forklift front tyres are a special heavy truck tyre with a wide footprint giving it greater stability and lift capacity in rough work environments.

Mast: Wide View& Durable

1. 2.5T rough terrain forklift mast width is 1525mm;
2. 3.5T rough terrain forklift mast width is 1600.5mm;
3. Maximum mast tilt angle F/R reaches to 10°/12°;

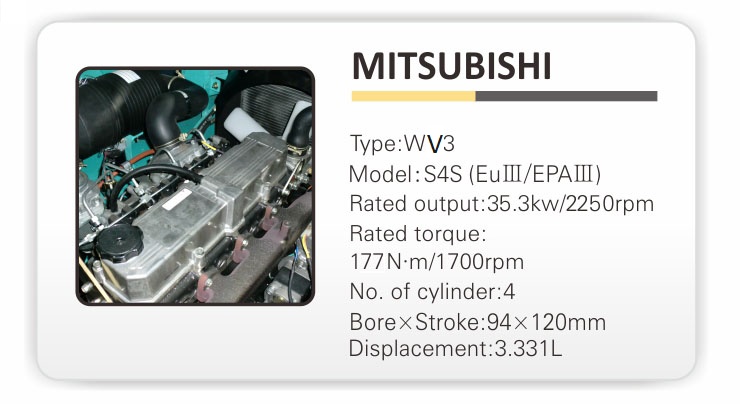

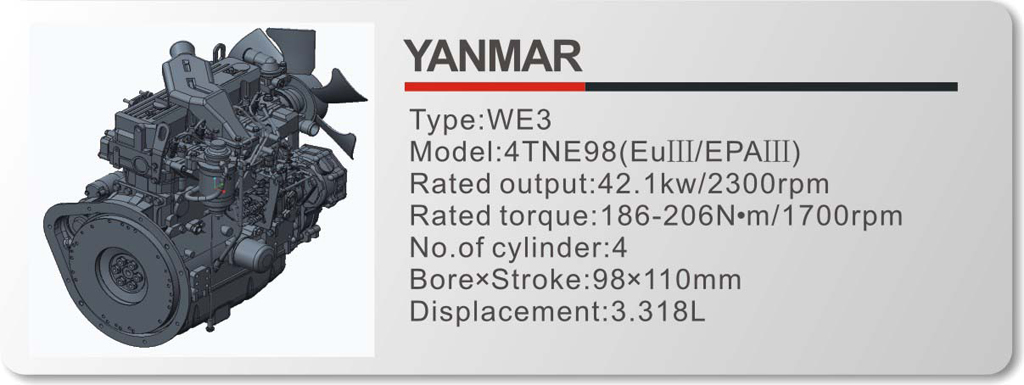

Engine

Forklift Specification

General	1	Model				FD18T-C2WE3	FD25T-C2WE3	FD35T-C2WE3
	2	Optional type				WV3
	3	Rated capacity			Kg	1800	2500	3500
	4	Load centre			mm	500
Characteristic &Dimension	5	Lift height			mm	3000
	6	Free lift height			mm	105	160	165
	7	Fork size		L×W×T	mm	1070x100x35	1070x122x40	1220x122x45
	8	Fork regulating range		Min./Max.	mm	200-1310	250-1160
	9	Mast tilt angle		F/R	Deg	10°/12°
	10	Front overhang			mm	509	586	601
	11	Rear overhang			mm	520	520	520
	12	Min. ground clearance			mm	250	270
	14	Overall dimensions		Length to face of fork (without fork)	mm	2910	2946	2956
	15			Overall width	mm	1440	1557.5	1600.5
	16			Mast lowered height	mm	2148	2265	2330
	17			Mast extended height (with backrest)	mm	4150	4175	4305
	18			Overhead guard height	mm	2256.5	2256.5	2276
	19	Turning radius(outside)			mm	2840	2870	2870
	20	Min. right angle stacking aisle width (add load length and clearance)			mm	4760	4726	4741
Performance	21	Speed		Travel(Unladen/Laden)	Km/h	20/18	20/18	22/22
	22			Lifting(Laden)	mm/s	590	570	450
	23			Lowering(Laden)	mm/s	450	600	540
	24	Max. Drawbar pull(Laden/unladen)			KN	13	17
	25	Max. Gradeability(Laden)			％	20	20	16
Tyre	26	Tyre		Front		12-16.5-12PR	12-16.5-12PR	14-17.5-14PR
	26	Tyre		Rear		27×10-12-12PR	27×10-12-12PR	27×10-12-12PR
	27	Tread		Front	mm	1125	1250.5
	27	Tread		Rear	mm	1185	1205
	28	Tyre pressure		Front	bar	620	680	680
	28	Tyre pressure		Rear	bar	650	650	650
	29	Seat to ceiling inside height			mm	1025	1010
	30	Wheelbase			mm	1880
Weight	31	Self weight			kg	3700	4465	5180
	32	Weight Distribution	Laden	Front Axle	kg	4730	5990	7725
	33		Laden	Rear Axle	kg	770	975	955
	34		Unladen	Front Axle	kg	1665	1785	2070
	35		Unladen	Rear Axle	kg	2035	2680	3110
Power>&Transmission	36	Battery	Voltage/Capacity		V/Ah	12/90	12/90	12/90
	37	Transmission	Manufacture			China
	38		Type			YQXD30-XH		YQXD40MKS-XH
	39		Stage	F/R		1/1
	40	Operating pressure(For attachments)			Mpa	16.5	20
	41	Min. right angle stacking aisle width			mm	2840	2615

Mast Specification

Type	Model	Max. fork height	Overall height			Free lift
			Lowered			With backrest			Without backrest
			Lowered			With backrest			Without backrest			1.8t	2.5t	3.5t	1.8t	2.5t	3.5t	1.8t	2.5t	3.5t
			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
		wide view 2-stage mast	M270	2700	1998	2085	2180	105	160	165	105	160	165
M300	3000		2148	2235	2330	105	160	165	105	160	165
M330	3300		2298	2385	2480	105	160	165	105	160	165
M350	3500		2398	2485	2580	105	160	165	105	160	165
M370	3700		2498	2585	2680	105	160	165	105	160	165
M400	4000		2698	2785	2880	105	160	165	105	160	165
M450	4500		2948	3035	3130	105	160	165	105	160	165
M500	5000		3198	——	——	105	——	——	105	——	——
M550	5500		3498	——	——	105	——	——	105	——	——
M600	6000		3748	——	——	105	——	——	105	——	——
Full free 3-stage mast	TFM360	3600	1908	——	——	725	——	——	1105	——	——
	TFM370	3700	——	1990	2115		798	790		1243	1246
	TFM400	4000	2033	2080	2205	850	888	890	1230	1333	1336
	TFM435	4350	2158	2205	2330	980	1013	1015	1360	1458	1461
	TFM450	4500	2208	——	——	1030	——	——	1410	——	——
	TFM470	4700	——	2320	2445	——	1128	1130	——	1573	1576
	TFM480	4800	2308	——	——	1130	——	——	1510	——	——
	TFM500	5000	2408	2455	2580	1230	1263	1265	1610	1708	1710
	TFM550	5500	2573	2620	2745	1390	1428	1430	1770	1873	1875
	TFM600	6000	2758	2805	2930	1580	1613	1615	1960	2058	2060
	TFM650	6500	2973	3020	3145	1790	1828	1830	2180	2273	2275

Type	Model	Max. fork height	Front Overhang			Tilt range		Capacity at max. height
			Front Overhang			FWD	BWD	Loand Center 500mm
			1.8t	2.5t	3.5t			Without side shift carriage			With side shift carriage
			1.8t	2.5t	3.5t			1.8t	2.5t	3.5t	1.8t	2.5t	3.5t
		mm	mm	mm	mm	Deg	Deg	kg	kg	kg	kg	kg	kg
wide view 2-stage mast	M270	2700	509	585	600	10°	12°	1800	2500	3500	1800	2500	3200
	M300	3000	509	585	600	10°	12°	1800	2500	3500	1800	2500	3200
	M330	3300	509	585	600	10°	12°	1800	2500	3500	1800	2500	3200
	M350	3500	509	585	600	10°	12°	1800	2500	3500	1800	2500	3200
	M370	3700	509	585	600	10°	12°	1800	2500	3500	1800	2500	3200
	M400	4000	509	585	600	10°	12°	1800	2500	3400	1800	2500	3100
	M450	4500	509	585	600	10°	12°	1500	2200	3100	1400	2100	2900
	M500	5000	509	——	——	6°	6°	1300	——	——	1200	——	——
	M550	5500	509	——	——	6°	6°	1000	——	——	900	——	——
	M600	6000	509	——	——	6°	6°	800	——	——	400	——	——
Full free 3-stage mast	TFM360	3600	509	——	——	10°	12°	1800	——	——	1800	——	——
	TFM370	3700	——	590	620	——	——	——	2500	3500		2400	3100
	TFM400	4000	509	590	620	10°	12°	1800	2500	3400	1800	2400	3100
	TFM435	4350	509	590	620	10°	12°	1800	2400	3000	1600	2200	2900
	TFM450	4500	509	——	——	10°	12°	1500	——	——	1400	——	——
	TFM470	4700	——	590	620	——	——	——	2100	2800	——	1900	2500
	TFM480	4800	509	——	——	10°	12°	1400	——	——	1300	——	——
	TFM500	5000	509	590	620	6°	6°	1300	1900	2600	1200	1600	2300
	TFM550	5500	509	590	620	6°	6°	1000	1500	2300	900	1200	2100
	TFM600	6000	509	590	620	6°	6°	800	1200	1900	400	800	1600
	TFM650	6500	509	590	620	6°	6°	350	700	1300	200	400	1100
