Heavy Duty Forklifts

INTRODUCTION TO Our

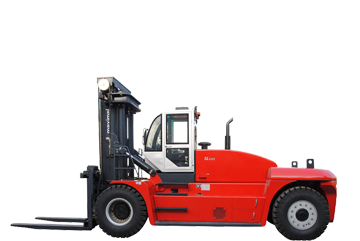

The M series is the first generation forklifts, designed by the Our engineering team. A world class design features advanced technologies and superior componentry as produced by competitive vendors the world over. The finished appearance with safety color design has attracted an audience in local and the world markets.

Intelligent by Design

The incorporation of a CAN-Bus system allows for a seamless connection of the vehicle Control Module (VMC) and Engine Control Module (ECM). This allows immediate exchange and accessibility to all data. Additional benefits include a significant reduction in wiring as well as increased functionality over conventional systems. The CAN-Bus system also delivers excellent reliability and full diagnosis capabilities, simplifying the servicing of the truck.

Power & Performance

Our 14-32t / 30,000-70,000 LB capacity forklift range is available with Cummins Diesel engine meeting a world standard Tier 3 NRMM emissions legislation:

› Engine protection system, sensing low oil pressure and high coolant temperature monitors the engine performance and shuts down the engine prior to a possible failure.

An override function for emergency situations is a standard feature.

Improved Fuel Economy

Minimize Tier 3 requirements

Program to Lower Rated Speeds to offset fuel consumption

Alternate Governor and Torque settings

Maintain fuel economy with HPCR ECM system compared to mechanical system

World Class Efficient ZF Transmission

ZF transmission from Germany in Our 14-32t/30,000-70,000 LB capacity heavy duty forklift trucks

ZF transmissions offer these features:

› Fully reversible power shift control

› 3 forward and 3 reverse speeds

› Positive speed engagement

› Reduction of operating costs

› Lower operating noise

› Customer orientated serviceability

› Applicable for electronic driveline management and inching

Lower Maintenance Drive Axle & Brakes

›German KESSLER drive Axle provides excellent lateral stability and long-term durability.

Full floating axle shafts and hub planetary final drives reduce axle windup to deliver higher torque to the drive wheels allowing greater tractive effort and performance.

›Multi-plate wet disc braking system supplied by American MICO Corp. offers more effective and reliable braking.

Superior visibility

The Cab also contributes to providing the driver with panoramic 360 Degree visibility, featuring: › Large curved front window, fitted with tinted safety glass provides better visibility. › Curved rear window with one-piece glass. › Minimum use of steel parts, providing the maximum possible glazed area. › Wide-view rear view mirrors are mounted inside the cab stay cleaner and are protected from damage. › The dash and display panel is mounted to the right hand side of the driver, so visibility through the windshield is unobstructed. › Excellent rearwards visibility is enhanced with the sloping design of the hood and counterweight. › A clear view to the front load and surrounding area is optimized through the Our wide view mast. Maintenance Intervals Doubled and Efficient Diagnostic program › Cummins Tier 3 Scheduled Maintenance 500 hours/6 month intervals for charge air cooled; same schedule for coolant changes; Dual Stage fuel filtration to improve particle separation, filter life and protect vital fuel system components. › Equipped as standard with either a manual or power hydraulic tilting cab, to ensure easy access to major components for inspection and service. › Low side steps and large grab handles, providing operators safe and easy access to the operators cab. Technicians can use side steps for daily inspections and maintenance. › Uniform placement of electrical and hydraulic tubing and hoses. › Centralized diagnostics in the operator cab › ‘CAN bus’ receptacle in the operator cab, for engine, transmission, hydraulics and instruments monitor panel. › LCD display with diagnostics for engine, transmission and electrical systems to quickly identify service needs. › Standard oil-immersed (wet) multi-plate disk brakes are virtually maintenance free. Green & Clean Euro III / EPA: Diesel engines that incorporate Japanese and American advanced engine technologies feature excellent environmental performance and conform to the world latest EPA Tier3 and EU Stage IIIA emission regulations. Optional Equipment › Specific masts 3M/118″ MFH to 6M/240″ MFH Simplex mast >Side shift/Fork position carriages with shaft type forks › Solid Pneumatic size tires › Air conditioning › Rear camera surveillance system › Special RAL colors › Various attachments >Contact your Our dealer in your area for additional details.
