Model

EGU 12XE3/EGU 16XE3/EGU 20XE3/EGU 25XE3/EGU 25XE3/EGU 30XE3/EGU 35XE3
Type of Forklift

Flame Proof Reach Truck
Capacity

1.2 T- 3.5 T
Controller

ZAPI / CURTIS
Tyres

PU
Features Specs Brochure Video

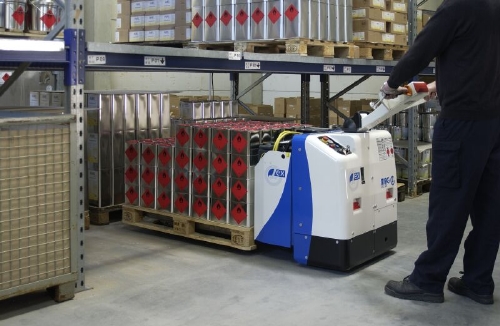

For horizontal transport of pallets and container in explosive Atmospheres.

  • AC asynchronous drive
  • Motor in type of protection increased safety (Ex e)
  • Battery capacity from 240 Ah up to 374 Ah possible
  • Optimized acceleration and braking behavior
  • Electrical braking of the driving motor with feed-back into the battery
Suitable for use in Ex-zones 1, 2 and 21, 22, according to ATEX directive 94/9/EC.
Registered and type-tested by the Physikalisch-Technische Bundesanstalt (PTB).
Marking: II 2G IIB +H2 T4 II 2D IP6x T130°

Model Max. Load Capacity Dead Weight Dimensions (LxW)
EGU 12XE3 1.200 kg 0,8 t 1,8 m x 0,8 m
EGU 16XE3 1.600 kg 0,8 t 1,8 m x 0,8 m
EGU 20XE3 2.000 kg 0,9 t 1,8 m x 0,8 m
EGU 25XE3 2.500 kg 0,9 t 1,8 m x 0,8 m
EGU 30XE2 3.000 kg 1,2 t 1,9 m x 0,9 m
EGU 35XE2 3.500 kg 1,2 t 1,9 m x 0,9 m
